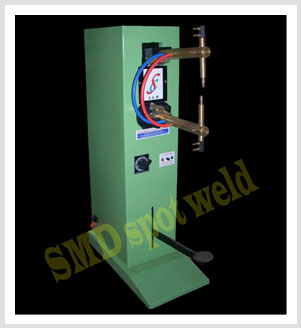

ROCKER ARM WELDING MACHINE
| Rocker Arm Spot Welding Machine |
|||||
|---|---|---|---|---|---|
| PARAMETERS | PT-8 |
PT-10 | PT-15 | PT-20 | PT-25 |
Ranging @ 50% duty cycle KVA |
8 |
10 | 15 | 20 | 25 |
| Throat depth Cm |
25 |
30 | 30 | 30 | 30 |
Throat Clearance Cm |
20 |
20-30 | 20-30 | 20-30 | 20-30 |
| Welding range max 2 X mm |
1.5 |
2.0 | 2.5 | 3.0 | 3.5 |
| M.S.Sheet mini 2 X mm |
0.25 |
0.3 | 0.4 | 0.4 | 1.0 |
| Short circuit current max Amps |
2500 |
5000 | 6500 | 8000 | 13000 |
| Weight (approx) Kg |
95 |
145 | 170 | 195 | 220 |
| Control |
Electronic timer 5-50 Cycle & 1-10 Sec |
||||
| Input Supply | 2 lines of 3 phase , 440 v AC , 50 Hz. | ||||
| Water cooled Arms & Electrode | Water supply at 30 O C , pressure 2.1 kg / cm 2 9ltrs / min |
||||
